A TRAILER THAT LASTS

Weight Icon black-01.png

13,500lb

PAYLOAD

Ruler Icon black-01.png

12-26'

LENGTHS

Channel Icon black-01.png

6" CHANNEL

FRAME

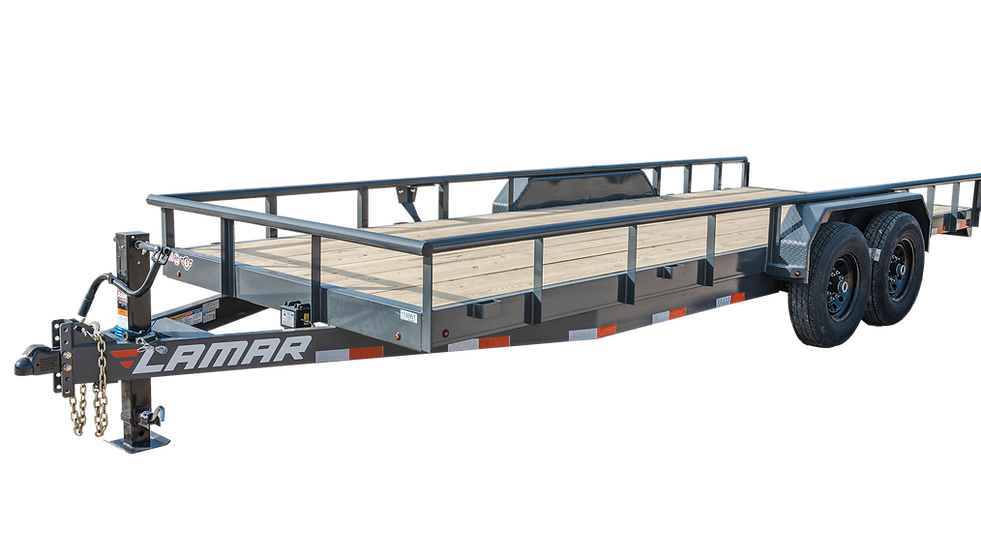

Extreme Duty Utility Trailer

Overview
U627 2023-02-28-8.png
Pressure Treated Pine Floor

All our lumber is made and installed to withstand weather.

Arctic Wire Harness

All our wire harnesses are sealed and the front hook up is rated for -65°F

Premium Components

We use brand name quality products for anything we don't produce in house

3 Year Structural Warranty

All our frames are built tough and we back them up with a 3 year warranty.

Premium Powder Coat

We metal blast and apply a super durable powder coat that will hold up to weather and salt better than liquid.

Extreme Duty Utility Trailer

Specs
Options

Varies by GVWR
7K Easy Lube Electric Brake Spring Axles

Standard

Brakes & Suspension

Options to Exchange or Add On

8K Electric Brake Oil Bath Spring Axles

7K Electric Brake Oil Bath Spring Axles

7K Easy Lube Electric Brake 22.5° Down Torsion Axles

Straight Deck

Wrap Tongue

6" Channel Frame

Diamond Plate Fenders

Side Rails

16" Spaced Crossmembers

Treated Yellow Pine Floor

3" X 2" Angle Toprail (Standard  on 12'-20')

2-3/8" Pipe Toprail (Standard  on 22'+)

Standard

Frame

Options to Exchange or Add On

2' Dove Tail

8' Deck Over Neck

12" Spaced Crossmembers

11 Gauge Diamond Plate Floor

Oak Floor

3" X 3" Square Tube Toprail

Single 10K Drop-Leg Jack

Standard

Jack

Options to Exchange or Add On

Dual 10K Drop-Leg Jacks

Single 10K 2-Speed Jack

Dual 10K 2-Speed Jacks

Single 10k Hydraulic Jack

Pair Of Support Stands

Led Lights

Weather Resistant Harness (-65°F)

Standard

Electrical

Options to Exchange or Add On

Solar Charger

Straight Deck with 57" Slide In Ramps - 25°

Standard

Loading Angles

Options to Exchange or Add On

Straight Deck with 5' Gate - 24°

Straight Deck with 24" Stand Up Ramps - 25°

2' Dove with 57" Slide In Ramps - 18°

2' Dove with 5' Gate - 17°

2' Dove with 24" Stand Up Ramps - 18°

Varies by GVWR
235/80 R16 (E) 10Ply Tire With Black Wheel

Standard

Tires

Options to Exchange or Add On

235/85 R16 (G) 14Ply Tire With Black Wheel
215/75 R17.5 (H) 16Ply SS Tire Black Wheel
Spare Tire Mount
Spare Tire

2-5/16" 21K Demco Adjustable Cast Iron Coupler

Bumper pull

Standard

Hitch

Options to Exchange or Add On

3" 25K Adjustable Pintle Eye Coupler

2-5/16" 25K Gooseneck Coupler

2-5/16" 30K Gooseneck Adjustable Topwind Square Coupler

6" Raised Neck & Coupler (ideal for lifted trucks)

12" Raised Neck & Coupler (ideal for lifted trucks)

Standard Stake Pockets

Side or Rear Slide-In Ramps (dependent on length)

Standard

Cargo Loading

Options to Exchange or Add On

Front Tool Box

5' Spring Assisted Heavy Duty Gate With Ramp Legs

Weld On D-Rings

Flush Mount D-Rings

Flush Mount Swivel D-Rings

Extra Stake Pockets

Lockable Chain Rack

Winch Plate

12,500lb Warrior Winch

Receiver Hitch & Plug

Pair Of 24" Wide Heavy Duty Stand-Up Ramps

Lamar Charcoal Gray Powder Coat

Standard

Color

Options to Exchange or Add On

None Available

77" x 12' - 2,436 lbs - 11,564 lbs

77" x 14' - 2,436 lbs - 11,564 lbs

77" x 16' - 2,550 lbs - 11,450 lbs

77" x 18' - 2,736 lbs - 11,264 lbs

77" x 20' - 2,940 lbs - 11,060 lbs

77" x 22' - 3,036 lbs - 10,964 lbs

83" x 12' - 2,436 lbs - 11,564 lbs

83" x 14' - 2,440 lbs - 11,560 lbs

83" x 16' - 2,550 lbs - 11,450 lbs

83" x 18' - 2,730 lbs - 11,270 lbs

83" x 20' - 2,935 lbs - 11,065 lbs

83" x 22' - 3,036 lbs - 10,964 lbs

83" x 24' - 3,150 lbs - 10,850 lbs

83" x 26' - 3,250 lbs - 10,750 lbs

Size - Weight - Payload

14K Sizes & Payload

83" x 12' - 2,586 lbs - 13,414 lbs

83" x 14' - 2,590 lbs - 13,410 lbs

83" x 16' - 2,700 lbs - 13,300 lbs

83" x 18' - 2,880 lbs - 13,120 lbs

83" x 20' - 3,085 lbs - 12,915 lbs

83" x 22' - 3,186 lbs - 12,814 lbs

83" x 24' - 3,220 lbs - 12,780 lbs

83" x 26' - 3,300 lbs - 12,700 lbs

Size - Weight - Payload

16K Sizes & Payload

Full Specs & Options
