A TRAILER THAT LASTS

Channel Icon white-01.png

6" CHANNEL

FRAME

Spacing white (2)-01.png

16" SPACED

CROSSMEMBERS

Tie Down white (3)-01.png

CARGO

TIE DOWNS

Equipment Hauler

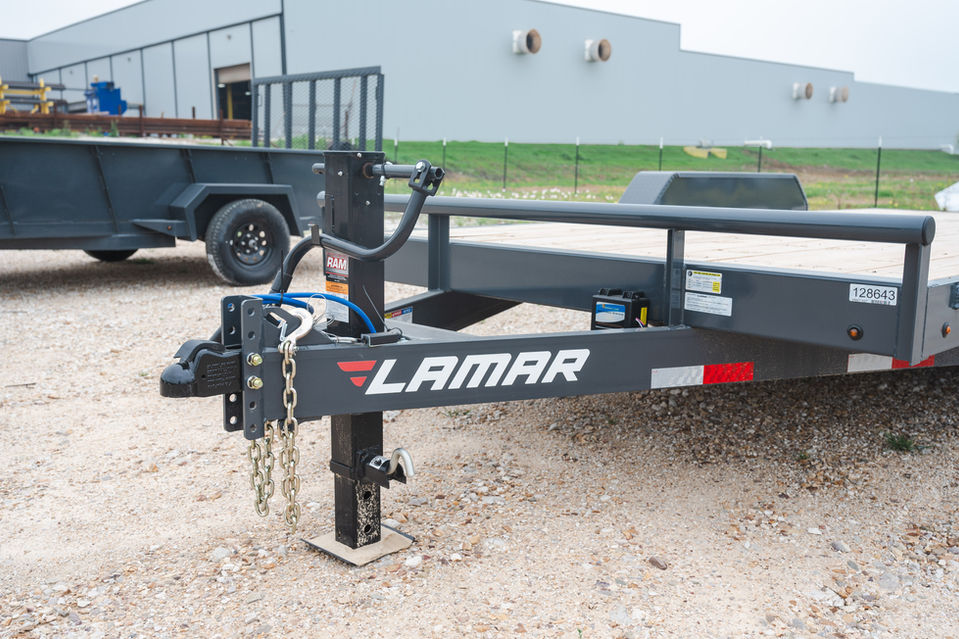

Lamar Equipment Hauler Trailer
Pressure Treated Pine Floor

All our lumber is made and installed to withstand weather.

Premium Components
Arctic Wire Harness

We use brand name quality products for anything we don't produce in house

All our wire harnesses are sealed and the front hook up is rated for -65°F

3 Year Structural Warranty

All our frames are built tough and we back them up with a 3 year warranty.

Premium Powder Coat

We metal blast and apply a super durable powder coat that will hold up to weather and salt better than liquid.

Equipment Hauler



Equipment Hauler Specs

GVWR

14,000lb - 16,000lb GVWR

See options for exact sizes and payload

Tires

235/80 R16 10Ply Tire

Black Wheel

Coupler

2" 7K Ram A-Frame Cast Coupler

Jack

Single 10K Drop-Leg Jack

Frame

Straight Deck

Wrap Tongue

6" Channel Frame

Diamond Plate Fenders

16" Center-To-Center Crossmembers

Treated Yellow Pine Floor

Rub Rail

Stake Pocket Tie Downs

Pair Of Slide-In Ramps

Cargo Loading

Color

Premium Powder Coat

7K Ez Lube Electric Brake Spring Axles

Brakes & Suspension

LED Lights

Weather Resistant Harness

Electrical



Completely Customizable

14K GVWR Sizes & Payload


Size - Weight - Payload

83" X 14' - 2632 lbs - 11368lbs

83" X 16' - 2720 lbs - 11280lbs

83" X 18' - 2800 lbs - 11200lbs

83" X 20' - 2910 lbs - 11090lbs

83" X 22' - 3080 lbs - 10920lbs

102" X 20' - 3420 lbs - 10580lbs

102" X 22' - 3725 lbs - 10275lbs




16K GVWR Sizes & Payload


Size - Weight - Payload

83" X 14' - 2782 lbs - 13218lbs

83" X 16' - 2870 lbs - 13130lbs

83" X 18' - 2950 lbs - 13050lbs

83" X 20' - 3060 lbs - 12940lbs

83" X 22' - 3230 lbs - 12770lbs

102" X 20' - 3570 lbs - 12430lbs

102" X 22' - 4685 lbs - 11315lbs




Brakes & Suspension


Standard -

Ez Lube Electric Brake Spring Axles

Optional -

Electric Brake Oil Bath Spring Axles

Ez Lube Electric Brake 22.5° Down Torsion Axles

Electric Brake Oil Bath Spring Axles

Ez Lube Idler Axle & Electric Brake Spring Axle




Cargo Loading


Standard -

Rub Rail

Standard Stake Pockets

Pair Of Slide-In Ramps (26° loading angle)

Optional -

Deck Mount Winch Plate

17,500Lb Superwinch

12,000Lb Warn Winch

Pair Of Rhino Ramps (12° loading angle)

Extra Stake Pockets

Weld On D-Rings

Flush Mount D-Rings

Flush Mount Swivel D-Rings

Lockable Chain Rack

Pair Of 24" Wide Heavy Duty Stand-Up Ramps

Neck Mount Winch Plate

Pair Of Support Stands




Color


Standard -

Lamar Gray Powder Coat




Coupler


Standard -

2-5/16" 21K Demco Adj Cast Coupler

Optional -

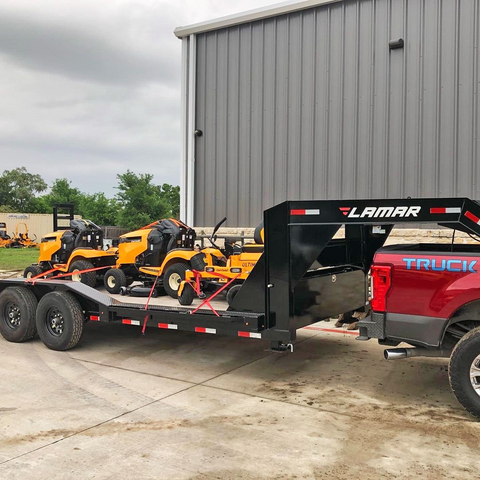

2-5/16" 30K Gooseneck Adj Topwind Square Coupler

3" 25K Adj Pintle Eye Coupler

2-5/16" 25K Gooseneck Coupler




Electrical


Standard -

Led Lights

Weather Resistant Harness




Frame


Standard -

Straight Deck

Wrap Tongue

6" Channel Frame

Diamond Plate Fenders

Drive Over Fenders

16" Center-To-Center Crossmembers

Treated Yellow Pine Floor

Optional -

Oak Floor

11 Gauge Diamond Plate Floor

Removable Diamond Plate Fenders

4' Dove

2' Dove




Jack


Standard -

Single 10K Drop-Leg Jack

Optional -

Dual 10K 2-Speed Jacks

Dual 10K Drop-Leg Jacks

Single 10K 2-Speed Jack




Other


Optional -

8' Deck Over Neck

Front Tool Box

6" Raised Neck & Coupler

Receiver Hitch & Plug

Regular Height Neck & Coupler




Tires


Standard -

235/80 R16 10Ply Tire

Black Wheel

Optional -

Spare Tire Mount
Spare Tire

235/85 R16 14Ply Tire With Black Wheel

215/75 R17.5 16Ply Ss Tire With Black Wheel
